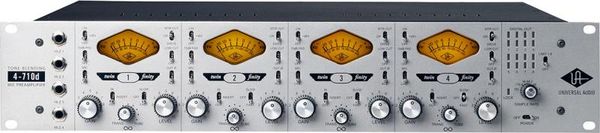

Universal Audio 4-710d 4-channel Microphone Preamp & Compressor.

The Universal Audio 4-710d is a boutique quality, four-channel microphone/line preamplifier with unique tube and solid-state tone blending capabilities - perfect for a wide range of microphone and instrument sources. This versatile multi-channel preamp offers selectable 1176-style compression circuitry on each channel, plus four additional line inputs feeding eight channels of pristine analog-to-digital conversion. Building upon UA's classic analog design approach, combined with smart modern features, the 4-710d is the most flexible preamp in the UA lineup.

At the core of the 4-710d are four channels of tone-blending "Twin-Finity" mic preamps with true-bypass 1176-style compression, including specially tuned "fast" and "slow" settings. Each of the four mic preamp channels allows for continuously variable phase-aligned tone, between a 100% tube and 100% solid-state signal path. Send and return jacks are available for external processing or signal access.

Tech Specs:

• Preamp Type:Hybrid
• Number of Channels:4
• Phantom Power:Yes
• Compressor:Yes
• Analog Inputs:4 x XLR (Mic), 4 x 1/4" (Line), 4 x 1/4" (Hi-Z), 4 x 1/4" (Line - CH 5-8)
• Analog Outputs:4 x XLR
• Digital Outputs:1 x DB-25 (AES/EBU), 2 x Optical (ADAT)
• Clock I/O:2 x Word Clock
• Frequency Response:20Hz-20kHz
• Rack Spaces:2U
• Height:3.5"
• Depth:12"
• Width:19"
• Weight:11.5 lbs.
• Manufacturer Part Number:4710D
