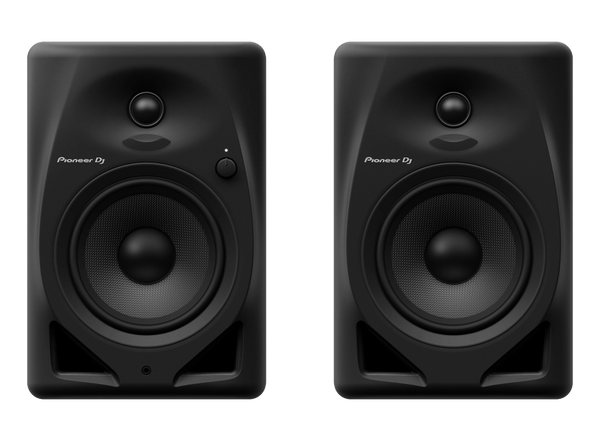

Pioneer DM-50D 5” Active desktop monitor system

Pioneer DM-50D 5” Active desktop monitor system

C$279.00

SET THE SCENE

The DM-50D speakers deliver balanced, punchy bass sound and they can pump out extra power thanks to the new Class D amplifier and 5-inch woofer in each unit. Flick the switch to change from DJ mode to Production mode and the DSP settings will automatically create the best sound for each application.

Advanced design for higher quality sound

Class D amplifier

Each DM-50D speaker produces pure, balanced bass sound thanks to a new Class D amplifier with 96kHz sampling DSP.

DECO convex diffusers

Another advancement from the DM-40 model comes in the updated design of the DECO convex diffusers which help deliver crystal-clear high frequencies in every direction, so you can enjoy a wide sweet spot and 3D stereo sound wherever you are in the room.

Time alignment

The woofer and tweeter are perfectly aligned so you’ll hear all sound frequencies clearly

Grooved ducts

The grooves on the ducts reduce air friction so bass is tight and punchy, even if you position the speakers against a wall. Plus, the curved front edges provide maximum rigidity and minimum resonance for clean audio at any volume level.

5-inch woofer

The 5-inch woofer creates powerful sound without distorting, even if you pump up the volume.

2-way sound mode – optimized for DJing and music production

There’s no need to decide whether you want a set of monitors that are best for DJing or making music, because the DM-50D speakers are perfect for both. Just flip the switch to choose either DJ mode or Production mode and the DSP settings will be optimized for the task, leaving you free to concentrate on your mix.

Easy to use with different DJ or production equipment

With RCA, mini jack, and the newly added TRS input terminals, you can connect different kinds of gear such as DJ controllers and mixers, or the laptop or soundcard you use. Connecting your headphones is simple via the socket on the front panel and the level knob is right in front of you too.


SPECIFICATIONS


Width

6.89”

Height

10.32”

Depth

Lch: 10.12” / Rch: 9.72”

Weight

Lch: 3.9 kg / Rch: 3.5 kg

Main Features

Type

2-way bass reflex, active monitor speakers

Tweeter

3/4” (19 mm) soft dome

Woofer

5" (127 mm) fiberglass cones

What's in the box

  • DM-50D

  • Power cord

  • Audio converter cable (3.5 mm stereo mini plug to RCA)

  • Speaker cord

  • Bottom cushion

  • Quick Start Guide

  • Precautions for Use

  • Warranty


Specifications


Dimensions

  • Lch: 175 x 262 x 257 mm / 6.89” x 10.32” x 10.12”

  • Rch: 175 x 262 x 247 mm / 6.89” x 10.32” x 9.72”

Weight

  • Lch: 3.9 kg / 8.6 lbs.

  • Rch: 3.5 kg / 7.7 lbs.

Power Supply

AC 100-240 V, 50 Hz / 60Hz

Amplifier Output

  • Lch: 25 W / 4 Ω

  • Rch: 25 W / 4 Ω

Impedance

10 kΩ

Enclosure

Bass reflex

Enclosure material

MDF vinyl laminate

Power Consumption

25 W

Power consumption during standby mode

0.3 W or less


Terminals


Inputs

  • 1/4” TRS jack x 1 (balanced input)

  • RCA pin jack x 1 (unbalanced input)

  • 3.5 mm stereo mini jack x 1 (unbalanced input)

Outputs

3.5 mm stereo mini jack x 1
