US Sphere DLX Modelling Mic System.

The UA Sphere DLX modeling microphone system gives you the sound of classic mics used by everyone from The Beatles and Beyoncé to Radiohead and Frank Sinatra. Featuring 38 legendary mic models of Neumann, Telefunken, AKG, Sony, and more,* the Sphere DLX gives your productions the most sought-after ribbon, condenser, and dynamic microphones ever made.

The Sphere DLX lets you audition classic mics before, during, and after recording with any interface, in any DAW. And when paired with an Apollo interface, you can do this with near‑zero latency. Thanks to its dual-capsule design, the Sphere DLX lets you easily record piano, drums, strings, and more in stereo. You can even use different mic models on the left and right channels for a more colorful stereo image. Plus, you can blend the sound of two mono mics using Dual Mode, and get classic-sounding mic recipes on snare drums and guitar cabs.

Easily tame room coloration for cleaner, more professional recordings using IsoSphere and its expert presets tailored for everything from your bedroom studio to popular isolation filters from sE Reflexion Filters, Aston Halo, Kaotica Eyeball,* and more.

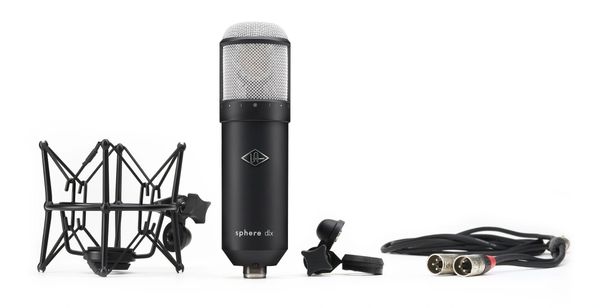

Right out of the box, the Sphere DLX mic gives you a professional shockmount, 25' cable, mic stand mount, and carrying case — so you'll be creating with the sound of legendary mics in no time.


Microphone Type: Modelling Condenser
Polar Pattern: Variable Dual Output
Frequency Range: 20 Hz 20 kHz
Sensitivity: -33 dB (22 mV) ref 1V at 1 Pa, 1 kHz
Output Impedance: 200 Ohms
Recommended Load Impedance: > 1 K Ohms
Maximum SPL: 140 dB SPL, 1% THD (w/ pad)
Dynamic Range: 133 dB
Capsule: 1 Diameter Dual Diaphragm
Phantom Power Requirements: 48 VDC, 5 mA typical
Connector: 5-Pin XLRM
Adjustable Controls: Pad: 10 dB, 20 dB
Included Accessories: Shockmount, Mic Stand Mount, 10' Cable, Carrying Case
Dimensions: 8.9" (225 mm) length, 2.5" (63 mm) diameter
Weight: 1.7 lbs (770 g)
