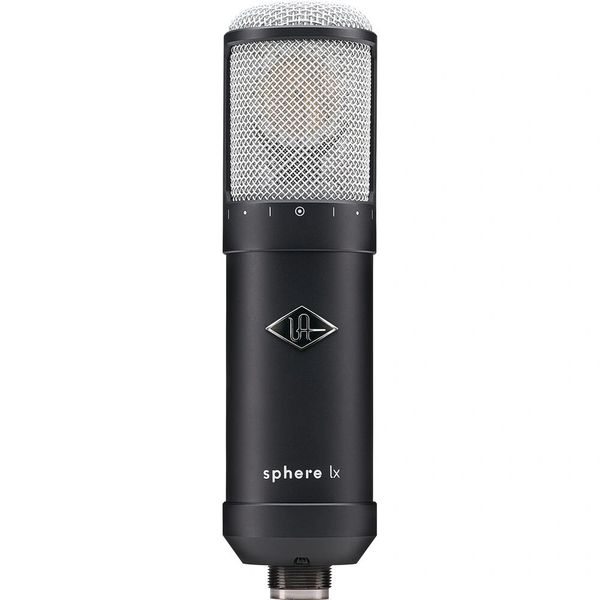

Universal Audio Sphere LX Modeling Microphone.
The Universal Audio Sphere LX Modeling Microphone combines a large-diaphragm condenser microphone with the Sphere LX plug-in to accurately model 20 of the most sought-after vintage microphones, including Neumann, Telefunken, AKG, and more. Auditioning and switching between mics during a session can be tedious, but thanks to the plug-in, you can change mic type, polar pattern, reduce bleed, room coloration, and even adjust the proximity effect—either during or after tracking vocals, acoustic and electric guitars, stringed and wind instruments, percussion, room sound, and more.
The Sphere LX is a dual-capsule microphone with dual outputs, custom-designed to capture the three-dimensional soundfield with exacting detail—including the directional and distance information otherwise lost with a conventional single-channel microphone. Remarkably rugged, the mic can handle in excess of 145 dB SPL before clipping and won't be damaged by high SPLs or air blasts as some vintage microphones can be. It also has a self-noise level of 10 dB-A SPL, well below most vintage microphones and comparable to many of the best modern microphones. Two XLR mic preamp inputs are needed to operate the mic with the plug-in, as all mic-modeling and other advanced DSP features occur in the Sphere LX software. Note that the mic can also be used as a standard condenser mic (no modeling) with only one XLR mic preamp required.
FEATURES:
Primary Applications |
Studio Recording |
Form Factor |
Large Diaphragm Mic / Stand/Boom Mount |
Intended Sound Sources |
Vocals, Acoustic Guitar, Electric Guitar, Electric Bass, Double Bass, Piano, Drums, Percussion, Overhead, Horns, Brass, Trumpet, Trombone, Woodwinds, Saxophone, Strings, Violin, Cello, Choir, Room Ambiance |
Sound Field |
Mono, Stereo |
Capsule |
2 x Condenser |
Diaphragm |
1" / 25.4 mm |
Polar Pattern |
Cardioid, Figure-8, Hypercardioid, Omnidirectional, Subcardioid/Wide Cardioid |
Pattern Selection |
Continuously Variable |
Orientation |
Side Address |
Circuitry |
Solid-State |
Pad |
-10 dB -20 dB |
High-Pass Filter |
None |
Gain Adjustment |
None |
Performance
Frequency Range |
20 Hz to 20 kHz |
Maximum SPL |
140 dB SPL (1% THD, with Pad) |
Impedance |
200 Ohms |
Load Impedance |
> 1000 Ohms |
Sensitivity |
-33 dB at 1 kHz |
Dynamic Range |
133 dB |
Connectivity
Output Connectors (Analog) |
1 x XLR 5-Pin Male (on Mic) |
Headphone Connector |
None |
Cable Length |
25' / 7.6 m |
Power
Operating Voltage |
48 V (Phantom Power) |
Operating Current Consumption |
5 mA |
Physical
Mounting |
Shockmount (Included) |
Mounting Thread Size |
5/8"-27 Female |
Included Case |
Hard Case |
Included Filters |
None |
Dimensions |
ø: 2.5 x L: 8.9" / ø: 6.3 x L: 22.6 cm |
Weight |
1.7 lb / 0.8 kg |
Packaging Info
Package Weight |
8.74 lb |
Box Dimensions (LxWxH) |
15.4 x 13.4 x 7.1" |
