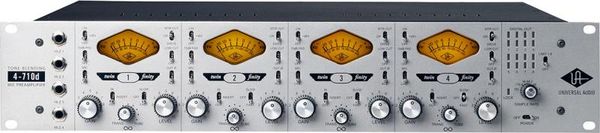

Universal Audio 4-710d 4-channel Microphone Preamp & Compressor.

The Universal Audio 4-710d is a boutique quality, four-channel microphone/line preamplifier with unique tube and solid-state tone blending capabilities - perfect for a wide range of microphone and instrument sources. This versatile multi-channel preamp offers selectable 1176-style compression circuitry on each channel, plus four additional line inputs feeding eight channels of pristine analog-to-digital conversion. Building upon UA's classic analog design approach, combined with smart modern features, the 4-710d is the most flexible preamp in the UA lineup.

At the core of the 4-710d are four channels of tone-blending "Twin-Finity" mic preamps with true-bypass 1176-style compression, including specially tuned "fast" and "slow" settings. Each of the four mic preamp channels allows for continuously variable phase-aligned tone, between a 100% tube and 100% solid-state signal path. Send and return jacks are available for external processing or signal access.

Tech Specs:

  • Preamp Type:Hybrid
  • Number of Channels:4
  • Phantom Power:Yes
  • Compressor:Yes
  • Analog Inputs:4 x XLR (Mic), 4 x 1/4" (Line), 4 x 1/4" (Hi-Z), 4 x 1/4" (Line - CH 5-8)
  • Analog Outputs:4 x XLR
  • Digital Outputs:1 x DB-25 (AES/EBU), 2 x Optical (ADAT)
  • Clock I/O:2 x Word Clock
  • Frequency Response:20Hz-20kHz
  • Rack Spaces:2U
  • Height:3.5"
  • Depth:12"
  • Width:19"
  • Weight:11.5 lbs.
  • Manufacturer Part Number:4710D
