Adam Audio T10S - Active Subwoofer

Adam Audio T10S - Active Subwoofer

C$599.00

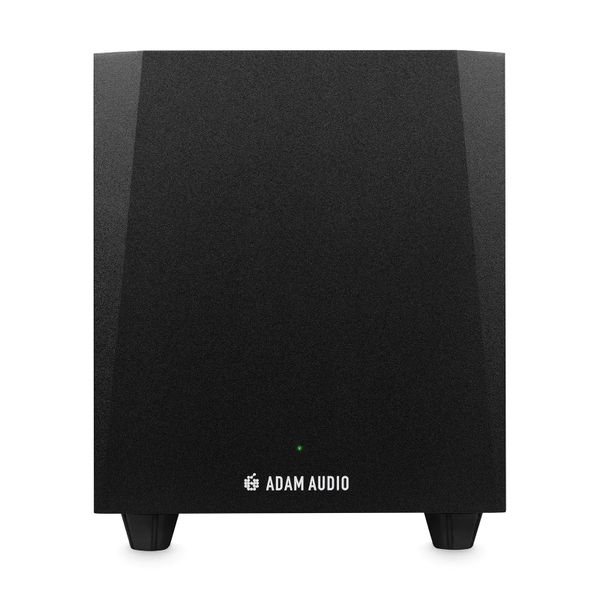

ADAM Audio T10S


The T10S is a powerful yet compact active subwoofer, designed to extend the bass response of any nearfield studio monitor. However, the subwoofer’s performance, features and connectivity are engineered specifically to complement ADAM Audio’s T5V and T7V speakers.


Equipped with a down-firing 10˝ woofer and a 130 W Class-D amplifier, the T10S’ frequency response ranges from 28 Hz to 120 Hz and offers an impressive max. SPL of 104 dB. An internal adjustable two-channel crossover allows calibration of the bass signal and provides optimal performance of the total system. The options at the rear of the subwoofer allow for varied adjustments which compensate for room acoustics or they offer more control for satellites attached.


While reciting the T Series design language, the T10S is one of the most compact subwoofers in its class, which allows it to be easily integrated in any studio environment. The acoustic performance was optimized by four high grade flexible rubber feet that prevent the sound from exciting the floor and a spacious rear facing bass reflex port for an optimized airflow.


Technical Data


Subwoofer (down-firing)

Number

1

Basket Ø

10" (260 mm)

Voice Coil Ø

38mm / 1.5"

Cone Material

Paper

Built-in Amplifiers

Subwoofer

1

Type

PWM

Amp. Power RMS

130 W

Control Panel

Crossover Frequency

80 Hz / 120 Hz / Bypass

Phase Inversion

0° / 180°

Connectors

Analog Inputs

XLR / RCA

Analog Outputs

XLR / RCA

General Data

Frequency Response

28 Hz - 120 Hz (-6 dB)

THD > 60 Hz

0.6%

Max. SPL at 1 m (hemisphere)

≥104 dB

Max. Power Consumption

190 W

Input Sensitivity

+4 dBu / -10 dBV

Panel

Rear

Bypass

Yes, via footswitch (not included)

Standby

Yes, activates after 15 minutes with no incoming signal

Weight

27 lb (12.2 kg)

Height x Width x Depth

15.4" (390 mm) x 12.5" (318 mm) x 16.25" (413 mm)

Warranty

5 years (2 years warranty plus 3 years optional with product registration) (2 years warranty plus 3 years optional with product registration)

Delivery Contents

Power cord, Quick Start Guide, Welcome Card
