Adam Audio AD-S3V S-Series 3-way 9" Woofer 4.5" midrange

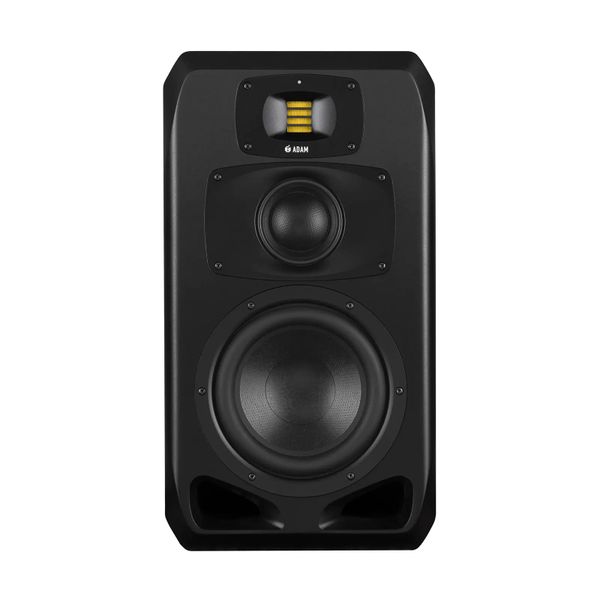

ADAM Audio S3V
The S3V is a three-way studio monitor optimized for vertical use and designed primarily for midfield applications, although it may also be used in more compact listening environments.
Bass frequencies from 32 Hz to 250 Hz are handled by ADAM Audio’s entirely new 9-inch Extended Linear Excursion (ELE) LF driver, which incorporates the company’s equally groundbreaking Symmetrical Magnet Assembly (SMA) and delivers a powerful, extremely accurate low end extending right down into the sub-bass region. Mid-range and HF information is reproduced with equally analytical precision thanks to the combination of ADAM Audio’s newly developed 4-inch DCH mid-range driver and the highly refined S-ART folded-ribbon HF driver. Together with the brand-new HPS waveguide, the latter offers high-frequency reproduction with an extremely broad sweet spot with fine, highly detailed imaging and a natural-sounding sense of depth.
The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.
The S3V’s built-in amplification is generously specified, comprising Class D units for the bass and mid-range drivers (500 W and 300W RMS respectively) and a 50 W Class A/B amplifier for the S-ART tweeter.
Offering flawless reproduction of audio frequencies between 32 Hz and 50 kHz, the S3V is a standout offering for anyone demanding highly accurate imaging and localization from their reference monitors.
ELE BASS DRIVER
Custom-built bass driver created specifically for the S Series, using ADAM Audio's engineering design experience and the latest computer modeling techniques.
DCH Midrange Driver
A self-developed, groundbreaking one-piece hybrid dome/cone design, offering the sonic advantages of both driver types, with minimal partial resonances.
HPS
Waveguide
The S-ART tweeter comprises the latest iteration of ADAM’s respected folded accelerated ribbon design, produced to tighter tolerances than ever before.
High Performance DSP Module
Custom DSP engine implements perfect crossovers for optimal frequency response and maximum dynamic range, in addition to EQ options and presets for in-room optimization.
Features & Benefits
|
Product Feature |
Benefit to the customer |
|---|---|
|
S-ART tweeter, handmade in Berlin and manufactured to the tightest tolerances in ADAM Audio’s history |
|
|
The air velocity ratio of 4:1 during the sound generation by folded S-ART membrane |
Direct, fast response in the high-range even with complex transients |
|
Newly designed HPS waveguide, milled from a solid block of aluminum |
|
|
New midrange driver with one-piece hybrid dome/cone (DCH) design |
|
|
Custom-built Extended Linear Excursion (ELE) bass driver |
Accurate audio reproduction at an extremely high resolution thanks to the precision-designed relationship between its low weight, optimized inner damping and highly rigid HexaCone membrane, in conjunction with a basket which has been developed to eliminate unwanted resonance and distortion |
|
Custom-designed Symmetrical Magnet Assembly (SMA) |
|
|
Vertical 3-way system with 1 x 9” woofer and 1 x 4" DCH midrange |
Very high resolution of the stereo image |
|
Spacious bass reflex ports on the front |
|
|
Highly efficient PWM ICE Power amplifier for the woofer and midrange driver coupled with an A/B amplifier for S-ART tweeter |
Low-distortion amplification at both low and high volume levels |
|
Linear frequency response of 32 Hz to 50 kHz (-20 dB) |
Unbiased reproduction in a wide frequency band |
|
Maximum peak sound pressure per pair in 1 m ≥ 124 dB |
Powerful, compression-free sound reproduction even at very high sound levels |
|
Custom DSP engine |
|
|
Analog XLR input |
Optimized for balanced line signals |
|
Acoustically optimized and weightily constructed cabinets |
Reduction of susceptibility to vibrations and unwanted edge-diffraction effect |
Technical Data
Woofer
|
Number |
1 |
|
Basket Ø |
9“ (223 mm) |
|
Voice Coil Ø |
2" (50 mm) |
|
Cone Material |
HexaCone |
Mid-range
|
Number |
1 |
|
Type |
Dome / Cone Hybrid |
|
Basket Ø |
4" (100 mm) |
|
Voice Coil Ø |
2.4" (60 mm) |
|
Cone Material |
Carbon Composite |
Tweeter
|
Number |
1 |
|
Type |
S-ART |
|
Diaphragm Area |
4 inch² (2420 mm²) |
|
Equiv. Diaphragm Ø |
2" (56 mm) |
|
Velocity Transform Ratio |
4:1 |
|
Diaphragm Weight |
0.17 g |
|
Waveguide |
HPS |
Built-in Amplifiers
|
Number |
3 |
|
Woofer |
1 |
|
Type |
PWM |
|
Amp. Power RMS |
500 W |
|
Mid-range |
1 |
|
Type |
PWM |
|
Amp. Power RMS |
300 W |
|
Tweeter |
1 |
|
Type |
A/B |
|
Amp. Power RMS |
50 W |
Control Options
|
Input Sensitivity |
Adjustable |
|
Parametric EQs |
6 |
|
Room Compensation High-Shelf EQ |
1 |
|
Room Compensation Low-Shelf EQ |
1 |
|
Preset Memories |
5 |
|
Delay |
0 ms to 5 ms |
Input Connectors
|
Analog |
XLR |
|
Input Impedance |
48 kOhm |
|
Max. Input Level |
+24 dBu |
|
Digital |
AES3 |
General Data
|
Panel |
Rear |
|
Frequency Response |
32 Hz - 50 kHz (-20 dB) |
|
THD > 100 Hz |
≤0.4 % |
|
Max. SPL per pair at 1 m |
≥124 dB |
|
Crossover Frequencies |
0.25 / 3 kHz |
|
Max. Power Consumption |
550 W |
|
Weight |
55.0 lb (25.0 kg) |
|
Height x Width x Depth |
21.1" (536 mm) x 11.5" (293 mm) x 15.0“ (380 mm) |
|
Warranty |
5 years (2 years warranty plus 3 years optional with product registration) |
|
Delivery Contents |
Power cord, Manual |
