Adam Audio A8H 3-way 8" Woofer

Adam Audio A8H 3-way 8" Woofer


The pinnacle of the A Series, the A8H is a 3-way speaker that delivers

the extremely accurate and analytical sound required for critical-

listening environments.

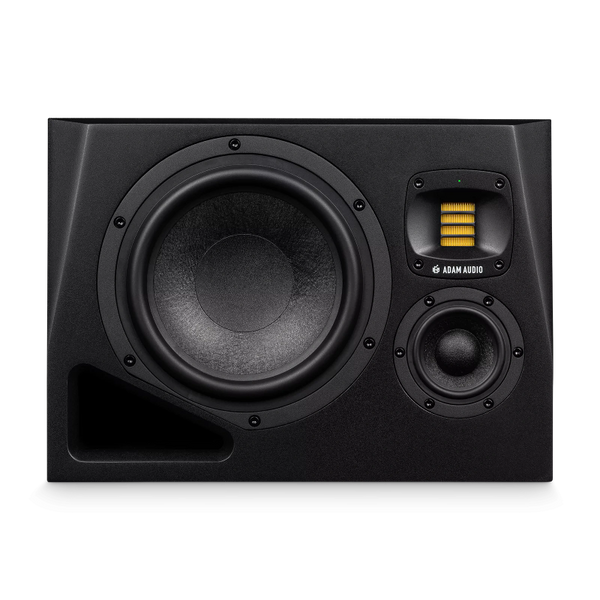

The A8H incorporates an 8-inch resonant Multi-Layer Mineral (MLM) fiber woofer, innovative midrange driver, and handmade precision X-ART tweeter, which together produce an ultra-wide frequency response.

Like the other members of the A Series family, the A8H gives you tremendous flexibility for fine-tuning the sound through rotatable HPS waveguide technology and onboard DSP. At home across a full range of audio applications in mid- to full-sized spaces, the A8H is the right choice when you’re looking for the most detailed representation of your audio.

The A8H is available in a left and right version.

-German Handmade Precision X-ART Tweeter with rotatable HPS waveguide

-8'' Woofer (Multi-Layer Mineral)

-3.5" DCH Midrange Driver

-Cumulated Amp. Power Peak: 340 W

Technical Specs

General Data

  • Display: Front panel multi-colour LED

  • Cabinet Design: Single front ported

  • Cabinet Material: Vinyl wrapped MDF and painted MDF front panel

  • Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)

  • AC Input Voltage: 100 – 240 V, 50/60 Hz

  • Power Rating: 500 W max.

  • Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing

  • Weight: 13.6 kg (30 lb)

  • Dimensions (Height x Width x Depth): 274 mm x 382 mm x 329 mm (9 3/4″ x 15″ x 13″)

  • Warranty: 5 years (2 years warranty plus 3 years optional with product registration)

  • Delivery Contents: A8H loudspeaker, power cable, Quick Start Guide


  • Woofer

    • Amplifier Type: PWM

    • Peak (10% THD, limiter deactivated): 250 W

    • RMS (1% THD, limiter deactivated): 200 W

  • Midrange

    • Amplifier Type: Class A/B

    • Peak (10% THD, limiter deactivated): 70 W

    • RMS (1% THD, limiter deactivated): 55 W

  •  Tweeter

    • Amplifier Type: Class A/B

    • Peak (10% THD, limiter deactivated): 20 W

    • RMS (1% THD, limiter deactivated): 15 W

Audio Input Connectors

  • Analog: XLR, RCA

  • Input Impedance: 9 kOhm / 3.3 kOhm

  • Max. Input Level: +19 dBu

Signal Processing

  • AD converter: 24-bit

  • Internal sample rate: 96 kHz

  • Delay range, resolution: 0 – 10 ms, 0.1 ms

  • Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
