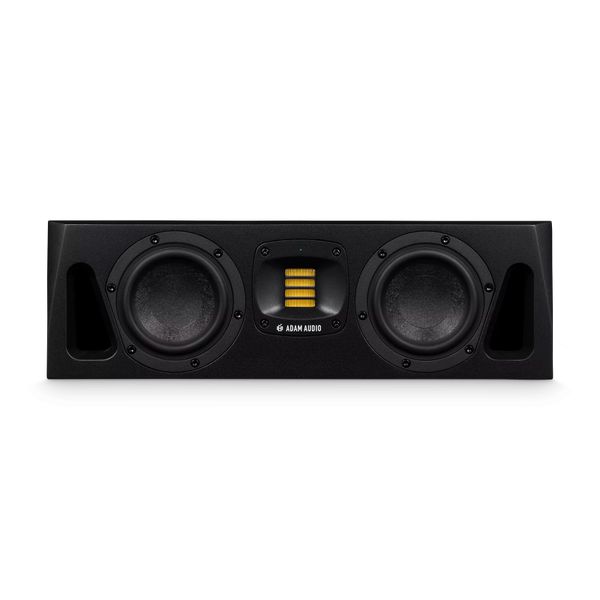

Adam Audio AD-A44H Nearfield/Centre Monitor

Adam Audio AD-A44H Nearfield/Centre Monitor

C$899.00

HIGH STANDARDS, LOW PROFILE


With a 19-inch width, the horizontally oriented A44H can sit on a standard rack shelf or be mounted above or below a display. The completely new design also enables the A44H to serve as a center speaker in immersive and 3D speaker configurations.


Dual 4-inch long-throw woofers and the X-ART tweeter deliver a wide frequency range, while onboard DSP-based tuning capabilities enable you to tweak the sound easily.





Technical Data


General Data


  • Display: Front panel multi-colour LED

  • Cabinet Design: Dual front ported

  • Cabinet Material: Vinyl wrapped MDF and painted MDF front panel

  • Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)

  • Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W

  • AC Input Voltage: 100 – 240 V, 50/60 Hz

  • Power Rating: 300 W max.

  • Operating Conditions: -10° C to +45° C (+14° F to +113° F); <75 % RH, non-condensing

  • Weight: 9.7 kg (21 lbs 6 oz)

  • Dimensions (Height x Width x Depth): 135 mm x 432 mm x 350 mm (5 3/8″ x 17″ x 13 3/4″)

  • Warranty: 5 years (2 years warranty plus 3 years optional with product registration)

  • Delivery Contents: A44H loudspeaker, power cable, Quick Start Guide


Audio Input Connectors




  • Input Impedance: 9 kOhm / 3.3 kOhm

  • Max. Input Level: +19 dBu

  • Analog: XLR, RCA


Signal Processing


  • AD converter: 24-bit

  • Internal sample rate: 96 kHz

  • Delay range, resolution: 0 – 10 ms, 0.1 ms

  • Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters


Amplification


  • Woofer

    • Amplifier Type: PWM

    • Peak (10% THD, limiter deactivated): 110 W

    • RMS (1% THD, limiter deactivated): 90 W

  • Tweeter

    • Amplifier Type: Class A/B

    • Peak (10% THD, limiter deactivated): 20 W

    • RMS (1% THD, limiter deactivated): 15 W


Control Options [via Network]


  • Networking Connector: RJ45

  • Connection Type: Ethernet

  • Communication Protocol: OCA using standard IP data

  • Control Software: A Control (Windows and MacOS available)

  • Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration

  • Advanced Room Adaptation: 6 x PEQ, Level, Delay

  • Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference


Signal Processing


  • AD converter: 24-bit

  • Internal sample rate: 96 kHz

  • Delay range, resolution: 0 – 10 ms, 0.1 ms

  • Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters


Control Options [via Backplate]


  • Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting

  • Level: -12 dB to +12 dB

  • Input Selection: Balanced, unbalanced

  • Voicings: Pure, UNR

  • Room Adaption:

    • Bass: +2, 0, -2, -4 dB

    • Desk: 0, -2, -4 dB

    • Presence: +1, 0, -1 dB

    • Treble: +1.5, 0, -1.5 dB
